Semiconductor and Electronic component production equipment

Tape Remover

Manual Tape Remover

OTR-M-series
A revolutionary new machine for manual removing!!
Simple and easy removal operation
マニュアルTape Remover

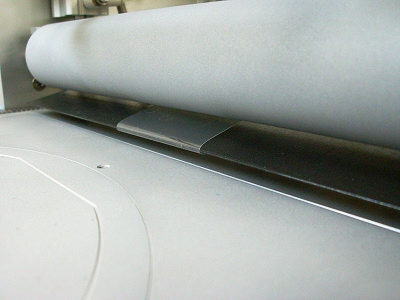

テープ剥離 テープ押さえ ワークサイズ切り替えスイッチ

Outline

This manual tape remover is a device used for the manual removal of protection films attached to wafers and printed circuit boards.

time:1min 53sec

Features

Simple operation

簡単操作&コンパクト!

Easy use, requiring no operation trays.
It uses a simple operation. Just set a work piece and operate the removal roller back and forth.

Table customizing

各種ワークに対応

Tables can be customized for a variety of workpieces. Sucking the whole surface of workpiece, large, thin, or warped wafers can be easily handled.

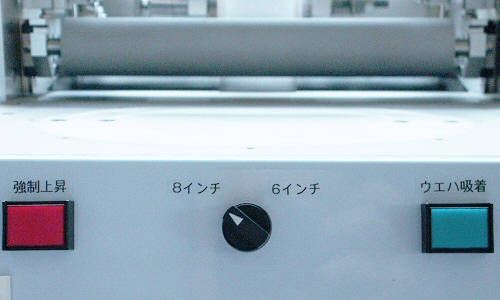

The suction range can be changed by switching. Will be effective in production sites dealing with various workpieces.

Specifications

    Manual
8 inch 12 inch
Dimensions W500 × D810 × H430(㎜) W650 × D980 × H430(㎜)
Weight 約 30 kg 約 70 kg
Work to be covered Wafer and PCB with tapes Wafer and PCB with tapes
Wafer size 2inch∼8inch 2inch∼12inch
Applicable tapes BG tapes and other protective films BG tapes and other protective films
Table spec A5056 Teflon coating A5056 Teflon coating
Power source AC 100V AC 100V
