Wafer Mounter
Semi-automatic
Mounter with a built-in pre-cutting system
[CE-marked]
OTM-series
No waste tape! Up to 40% cost saving!!
time：1min 40sec
Outline
Semi Automatic Tape Mounters, equipped with a pre-cutting unit, ensure high quality tape pre-cutting and mounting performance.
OKK's original tape cutting method enables substantial cost savings as it makes no waste between pre-cut pieces.

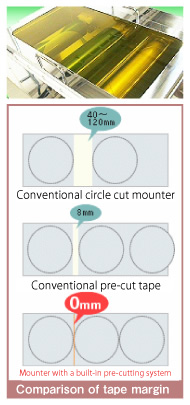

Cost reduction with no waste between pre-cut pieces
By using pre-cut tapes, there will be advantages
- Narrows the width of tape waste down to 1/4 of using rolled tapes.
- Frames will last long as not being damaged.
- No need to worry about particles while tapes being cut.
You may find it difficult to change from rolled tapes to precut tapes because of higher prices and the need to purchase a Tape Mounter.
Being able to pre-cut rolled tapes inside Tape Mounter will totally save pre-cutting costs.
There being no gap between pre-cut pieces, you will be able to take out much more pieces from a roll. It will be 40% cost saving at max compared to a regular method using a rolled tape with a conventional Tape Mounter. (Varies according to the amount of tape waste.)
Semi-automatic wafer mounter for pre-cut tape
OTM-series
Productivity improved!
Cost reduction!
Quick and precise tape mounting.
Cost reduction!
Quick and precise tape mounting.
Outline
Semi Automatic Tape Mounters attach a pre-cut tape (dicing tape, protection tape, or DAF) to a dicing frame, lead frame, wafer, or a package.
Need only to manually set a workpiece and press START button to start the automatic operation.
Features
The smallest in the industry
The compact space-saving design allows you to place it anywhere.
The fastest in the industry
Tape mounting speed of 15 s/piece is realized. (8-in frame) Varies depending on the workpiece.
Compatible with pre-cut tape
By using pre-cut tape, it contributes to significant cost reduction and quality improvement.
Using pre-cut tapes has many advantages as follows
- ●Huge cost reduction. Wasted tape width narrowed down to 1/4 of the conventional method.
- ●Workload reduction. No need of cutting tapes.
- ●Frames lasting long, with not being damaged.
- ●No worry about particles while tape cutting
Cost comparison between pre-cut tapes and conventional tapes
| tape type（100m） | Price | Total pieces | Costs per precut piece |
|---|---|---|---|
| normal tape | @30,000 | 240 pieces | 30000/240=@125 |
| pre-cut tape | @34,000 | 340 pieces | 34000/340=@100 |
【Cost reduction of ￥25/piece】
If processing 1000 pieces per day…
￥25×1,000pieces=
【Cost down ￥25,000/day 】
Per one year･･･
￥25,000×365day＝
【￥9,000,000 of cost reduction】
Applicable to DAF (Die Attachment Film)
The device is applicable to DAF. It will streamline the process.
Simple, one-touch operation
After setting a workpiece (dicing frame, wafer) on the table, press START button to perform quick and accurate tape mounting operation.
Option
Table customization
Chuck table for substrate
Porous table for very thin wafer
We manufacture mount tables that matches each workpiece.
By attaching a heater, it is possible to handle non-adhesive tape.
Table height adjustment mechanism
Table height can be adjusted at an interval of 0.02mm, thus it is possible to meet works of various thickness .
Ｍount Table heater / Temp. control
Due to the temperature control function of the stage, it is possible to attach non-adhesive tape, DAF tape, etc.
Ionizer
If you need, It can be also installed an ionizer (static eliminator).
All SUS (stainless steel) specifications
By making the all exterior SUS, it becomes a measure against particles
Specifications
| With a Built-in Pre-cutting System |
|---|
８inch type  |
12inch type  |
| Work to be covered | Up to 8" frame | Up to 12" frame |
|---|---|---|
| Tape used | Roll Tape DicingTape/BackGrindTape(BG)/DryFilm/DieAttachFilm(DAF) |
|
| Cycle time (attaching speed) |
30sec/pc. | 35sec/pc. |
| Attaching accuracy | ±1mm or less | |
| Dimensions | W600㎜×D1170㎜×H1130㎜ | W715㎜×D1330㎜×H1155㎜ |
| Weight | Approx. 260kg | Approx. 360kg |
| For precut tape type |
|---|
８inch type  |
12inch type  |
| Work pieces to be processed | - 8inch | - 12inch |
|---|---|---|
| Tape to be used | Pre-cut tape (Dising tape) | |
| Cycle time (attaching speed) |
25sec/pc. | 35sec/pc. |
| Pasting accuracy | Within±1mm | |
| Dimensions | W500㎜×D680㎜×H1120㎜ | Ｗ655㎜×Ｄ800㎜×Ｈ1170㎜ |
| Weight | Approx. 170kg | Approx. 200kg |
